EH管道旋转接头

最高转速:2 r/min  工作温度:-30~+121℃  最大压力:42Mpa  适用介质:油、水、空气...
Description

EH 系列旋转接头是用于钢性管道之间摆转或低速旋转的一种活动关节,其内部由两排钢球轴承支撑,旋转平稳,专用密封件使用寿命长。

产品特点:
         两排精密级钢球支撑,运转平稳,无摆动;
         轴承内部预填轴承润滑脂,终身免维护;
         专用密封圈,非标款最高可承受42Mpa;
         具有多种活动关节结合样式,可满足现场工况复
         杂空间转动传输介质;


重要提示:
         1.管道摆动接头,不适合长期旋转连续旋转工作;
         2.严禁输送易燃、易爆、有毒或强腐蚀介质;
         3.主体材料可选择碳钢、SUS304、SUS316L等;
         4.标准型号材料为碳钢,其它材料需另注明;

技术参数:
     最高转速:2 r/min
     工作温度:-30~+121℃
     最大压力:5Mpa
     适用介质:油、水、
                空气
注:最大压力达42Mpa,需另外注明订货


EH 型旋转接头

DN订货号
Order-No.
dDL
DN订货号
Order-No.
dDL
20AEH020A2064103100AEH100A100158120
25AEH025A2568103125AEH125A125186130
32AEH032A3278110150AEH150A150208130
40AEH040A4088110200AEH200A200268145
50AEH050A5099110250AEH250A250338180
65AEH065A65118120300AEH300A300395180
80AEH080A80134120350AEH350A350455185

EHA 型旋转接头

DN订货号
Order-No.
dDLKFlange 16KG
D1D2n-X
20AEHA020A2064183DN20PN16105754-Φ14
25AEHA025A2568183DN25PN16115854-Φ14
32AEHA032A3278194DN32PN161401004-Φ18
40AEHA040A4088200DN40PN161501104-Φ18
50AEHA050A5099200DN50PN161651254-Φ18
65AEHA065A65118210DN65PN161851458-Φ18
80AEHA080A80134220DN80PN162001608-Φ18
100AEHA100A100158224DN100PN162201808-Φ18
125AEHA125A125186240DN125PN162502108-Φ18
150AEHA150A150208240DN150PN162852408-Φ22
200AEHA200A200268269DN200PN1634029512-Φ22
250AEHA250A250338320DN250PN1640535512-Φ26
300AEHA300A300395336DN300PN1646041012-Φ26
350AEHA350A350455349DN350PN1652047016-Φ26

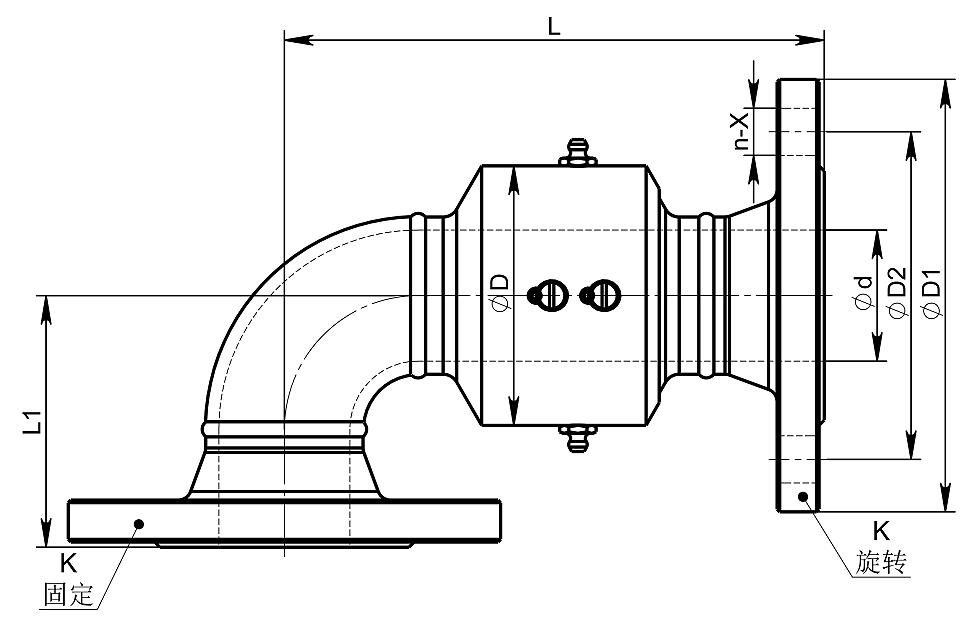

EHB 型旋转接头

DN订货号
Order-No.
dDLL1KFlange 16KG
D1D2n-X
20AEHB020A206418178DN20PN16105754-Φ14
25AEHB025A256816865DN25PN16115854-Φ14
32AEHB032A327818474DN32PN161401004-Φ18
40AEHB040A408819383DN40PN161501104-Φ18
50AEHB050A509920696DN50PN161651254-Φ18
65AEHB065A65118229109DN65PN161851458-Φ18
80AEHB080A80134246126DN80PN162001608-Φ18
100AEHB100A100158274154DN100PN162201808-Φ18
125AEHB125A125186312182DN125PN162502108-Φ18
150AEHB150A150208337207DN150PN162852408-Φ22
200AEHB200A200268410265DN200PN1634029512-Φ22
250AEHB250A250338504324DN250PN1640535512-Φ26
300AEHB300A300395563383DN300PN1646041012-Φ26
350AEHB350A350455623438DN350PN1652047016-Φ26

EHC 型旋转接头


DN订货号
Order-No.
dDLL1KFlange 16KG
D1D2n-X
20AEHC020A206417978DN20PN16105754-Φ14
25AEHC025A256815365DN25PN16115854-Φ14
32AEHC032A327817474DN32PN161401004-Φ18
40AEHC040A408818683DN40PN161501104-Φ18
50AEHC050A509921296DN50PN161651254-Φ18
65AEHC065A65118248109DN65PN161851458-Φ18
80AEHC080A80134272126DN80PN162001608-Φ18
100AEHC100A100158324154DN100PN162201808-Φ18
125AEHC125A125186384182DN125PN162502108-Φ18
150AEHC150A150208434207DN150PN162852408-Φ22
200AEHC200A200268551265DN200PN1634029512-Φ22
250AEHC250A250338688324DN250PN1640535512-Φ26
300AEHC300A300395790383DN300PN1646041012-Φ26
350AEHC350A350455897438DN350PN1652047016-Φ26
