D系列旋转接头是一种专门具有多个通道，可连续提供多种介质给低速高压旋转设备的一种旋转接头，服务于加工中心旋转工作台、旋转平台、卷取机、转炉、大包回转工作台、液压机械及多通路高压控制器等设备。
产品特点：
两只宽大精密轴承支撑,运转平稳,轴承终生无需维护；
进口专用密封件,保证长寿命运转；
不锈钢轴芯经特殊处理保证了足够耐磨性；
壳体可由铝合金、不锈钢或黄铜制作；
独特的排泄孔回流设计,防止泄漏至外部影响环境；
可根据客户工况订制专用产品；
技术参数：
最高转速：300 r/min
温度范围：-30～+80℃
最大压力：21Mpa
工作介质：液压油
重要注意：
1.技术参数数据为最大值,并不能同时使用；
最高工作转速与工作压力成反比且与密封介质润滑能力、密封件散热等工况有关系；
转速10RPM以下时,最大工作压力可达30Mpa；
2.内部通道可能相互渗漏,应注意不同流体的相容性,防止交叉污染；
3.工作流体、压力介质均应过滤后使用,过滤精度不低于10μm；
4.提供了排泄孔,在正常状态下收集泄漏油；
M 旋转接头(法兰连接)
| TYPE | Order-No. | I | K | A | B | C | M | D | P | E | F | G | V | J | W | H | Y | L | Q | n-X | n-X' | 10Mpa工作压力 最高转速(r/min) |
| JSD | JSD015 | 1xG1/2" | 40 | 126 | 78 | 13 | / | 2-M8 | 58 | 5 | 40 | 83.5 | / | 10 | 60 | 80 | / | Rc1/8" | 95 | 4-φ9 | 4-M8 | 190 |
| JSD020 | 1xG3/4" | 45 | 133 | 83 | 16 | 2-M8 | 59 | 5 | 40 | 88 | 12 | 65 | 85 | 102 | 4-φ9 | 4-M8 | 160 | |||||
| JSD025 | 1xG1" | 45 | 143 | 90 | 22 | 2-M12 | 64 | 5 | 40 | 95 | 12 | 65 | 85 | 110 | 4-φ9 | 4-M8 | 150 | |||||
| JSD032 | 1xG1-1/4" | 55 | 162 | 108 | 30 | 2-M12 | 65 | 6 | 46 | 105 | 14 | 80 | 110 | 126 | 4-φ9 | 4-M8 | 110 | |||||
| JSD2 | JSD2008 | 2xG1/4" | 45 | 143 | 83 | 6 | 14 | 2-M8 | 58 | 5 | 39 | 82 | 21.2 | 12 | 65 | 85 | 12 | 113 | 4-φ9 | 4-M8 | 160 | |
| JSD2010 | 2xG3/8" | 45 | 153 | 90 | 9 | 15 | 2-M12 | 65 | 5 | 41 | 88.5 | 23 | 12 | 65 | 85 | 12 | 125 | 4-φ9 | 4-M8 | 150 | ||
| JSD2015 | 2xG1/2" | 55 | 176 | 108 | 12 | 20 | 2-M12 | 70 | 6 | 46 | 96.5 | 30 | 14 | 80 | 110 | 12 | 144 | 4-φ9 | 4-M8 | 110 | ||
| JSD2020 | 2xG3/4" | 70 | 226 | 155 | 16 | 30 | 2-M12 | 100 | 5 | 54 | 125 | 36 | 16 | 100 | 125 | 25 | 180 | 6-φ14 | 6-M12 | 95 | ||
| JSD3 | JSD3008 | 3xG1/4" | 45 | 164 | 83 | 6 | 14 | 2-M8 | 58 | 5 | 39 | 82 | 21 | 12 | 65 | 85 | 12 | 140 | 4-φ9 | 4-M8 | 160 | |
| JSD3010 | 3xG3/8" | 45 | 175 | 90 | 9 | 16 | 2-M12 | 65 | 5 | 41 | 89 | 23 | 12 | 65 | 85 | 12 | 150 | 4-φ9 | 4-M8 | 150 | ||
| JSD3015 | 3xG1/2" | 60 | 206 | 108 | 12 | 20 | 2-M12 | 70 | 6 | 46 | 96.5 | 30 | 14 | 90 | 120 | 18 | 170 | 4-φ9 | 4-M8 | 110 | ||
| JSD4 | JSD4006 | 4xG1/8" | 45 | 176 | 90 | 6 | 18 | 2-M12 | 64 | 5 | 40 | 84 | 18 | 12 | 65 | 85 | 15 | 145 | 4-φ9 | 4-M8 | 150 | |
| JSD4008 | 4xG1/4" | 45 | 176 | 90 | 6 | 18 | 2-M12 | 64 | 5 | 40 | 84 | 18 | 12 | 65 | 85 | 15 | 145 | 4-φ9 | 4-M8 | 150 | ||
| JSD4010 | 4xG3/8" | 60 | 220 | 108 | 9 | 22 | 2-M12 | 70 | 6 | 46 | 95 | 26 | 14 | 90 | 120 | 20 | 190 | 4-φ9 | 4-M8 | 110 | ||
| JSD4015 | 4xG1/2" | 75 | 244 | 115 | 12 | 29 | 2-M12 | 74 | 6 | 47 | 103 | 30 | 16 | 110 | 130 | 25 | 210 | 4-φ9 | 4-M8 | 95 |
MH Rotary Joints(Flange connection type, Installed with slip rings)
| TYPE | Order-No. | I | K | O | A | B | C | M | D | P | E | F | G | V | J | W | H | Y | U | N-S | R | L | Q | n-X | n-X' | 10Mpa工作压力 最高转速(r/min) |

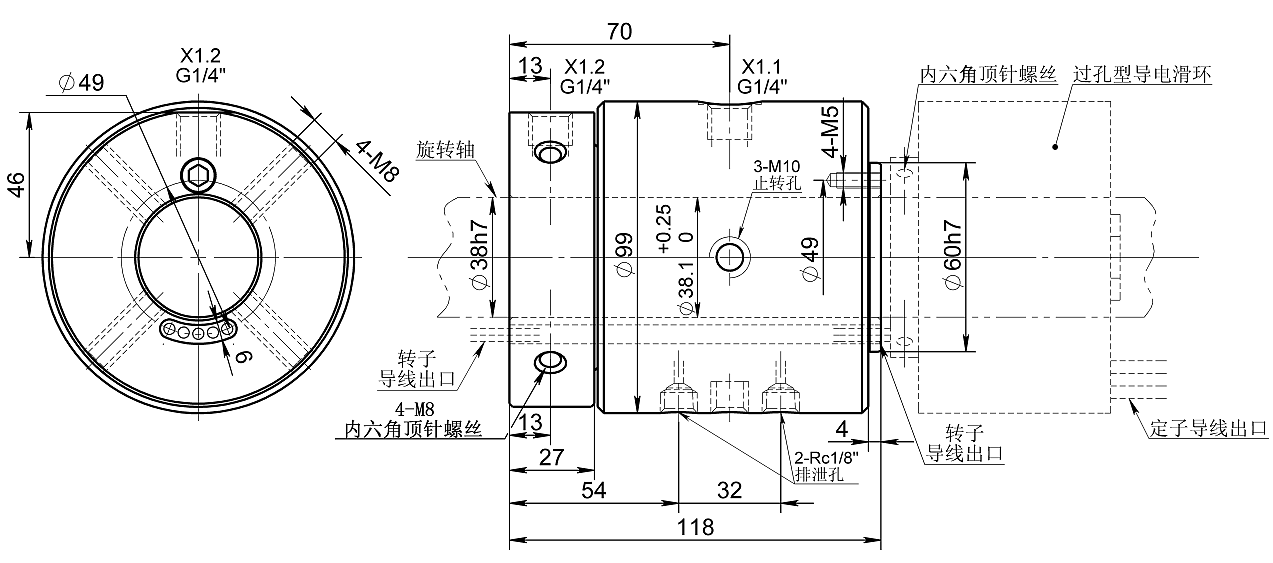

| JSD2H | JSD2008H010 | 2xG1/4" | 55 | 10 | 169 | 108 | 6 | 26 | 2-M12 | 70 | 6 | 46 | 95 | 25 | 14 | 80 | 110 | 15 | 70 | 4-M8 | 90 | Rc1/8" | 130 | 4-φ9 | 4-M8 | 110 |
| JSD2010H010 | 2xG3/8" | 55 | 169 | 108 | 9 | 26 | 70 | 46 | 95 | 25 | 14 | 80 | 110 | 15 | 70 | 90 | 130 | 4-φ9 | 4-M8 | 95 | ||||||
| JSD2015H010 | 2xG1/2" | 75 | 185 | 115 | 12 | 30 | 74 | 47 | 102 | 30 | 16 | 110 | 130 | 15 | 80 | 98 | 145 | 4-φ9 | 4-M8 | 95 | ||||||
| JSD3H | JSD3008H010 | 3xG1/4" | 55 | 194 | 108 | 6 | 26 | 70 | 46 | 95 | 25 | 14 | 80 | 110 | 15 | 70 | 90 | 155 | 4-φ9 | 4-M8 | 95 | |||||
| JSD3010H010 | 3xG3/8" | 55 | 194 | 108 | 9 | 26 | 70 | 46 | 95 | 25 | 14 | 80 | 110 | 15 | 70 | 90 | 155 | 4-φ9 | 4-M8 | 95 | ||||||
| JSD3015H010 | 3xG1/2" | 75 | 215 | 115 | 12 | 30 | 74 | 47 | 102 | 30 | 16 | 110 | 130 | 15 | 80 | 98 | 175 | 4-φ9 | 4-M8 | 95 | ||||||
| JSD4H | JSD4008H010 | 4xG1/4" | 55 | 219 | 108 | 6 | 26 | 70 | 46 | 95 | 25 | 14 | 80 | 110 | 15 | 70 | 90 | 180 | 4-φ9 | 4-M8 | 110 | |||||
| JSD4010H010 | 4xG3/8" | 55 | 219 | 108 | 9 | 26 | 70 | 46 | 95 | 25 | 14 | 80 | 110 | 15 | 70 | 90 | 180 | 4-φ9 | 4-M8 | 95 | ||||||
| JSD4015H010 | 4xG1/2" | 75 | 245 | 115 | 12 | 30 | 73 | 46 | 102 | 30 | 16 | 110 | 130 | 25 | 80 | 98 | 209 | 4-φ9 | 4-M8 | 95 |
MT 旋转接头(螺纹连接)
| TYPE | Order-No. | I | K1 | K2 | A | B | C | D | J | P | E | F | G | V | W | L | Q | 10Mpa工作压力 最高转速(r/min) |
| MT01 | MT01008.03 | 1xG1/4" | G1/4"-RH | / | 83 | 59 | 6 | M8 | / | 39.5 | 13 | 26 | 39.5 | / | 21 | / | / | 190 |
| MT01010.03 | 1xG3/8" | G3/8"-RH | 93 | 59 | 8 | M8 | 43.5 | 16 | 30 | 43.5 | 21 | / | / | 190 | ||||
| MT01015.03 | 1xG1/2" | G1/2"-RH | 121 | 78 | 13 | 2-M8 | 36.5 | 18 | 35 | 62 | 32 | Rc1/8" | 73.5 | 190 | ||||
| MT01020.03 | 1xG3/4" | G3/4"-RH | 133 | 83 | 16 | 2-M8 | 40.5 | 20 | 40 | 69.5 | 38 | 83.5 | 160 | |||||
| MT01025.03 | 1xG1" | G1"-RH | 148 | 90 | 22 | 2-M12 | 46 | 25 | 45 | 77 | 38 | 92 | 150 | |||||
| MT01032.03 | 1xG1-1/4" | G1-1/4"-RH | 168 | 108 | 30 | 2-M12 | 48 | 25 | 52 | 88 | 46 | 109 | 110 | |||||
| MT02 | MT02008.03 | 2xG1/4" | G3/4"-RH | G1/4" | 153 | 83 | 6 | 2-M8 | 15 | 49.5 | 20 | 49 | 73.5 | 21.2 | 38 | 104.5 | 160 | |
| MT02008.03 (1690-000-168) | 2x1/4"NPT | G1"-RH | 1/4"NPT | 150 | 66.4 | 8 | / | 19 | / | 18 | 55.5 | 68 | 29.5 | 46 | / | / | 160 | |
| MT02010.03 | 2xG3/8" | G1"-RH | G3/8" | 168 | 90 | 8 | 2-M12 | 16.5 | 57 | 25 | 56 | 80.5 | 23.2 | 46 | Rc1/8" | 117 | 150 | |
| MT02015.03 | 2xG1/2" | G1-1/4"-RH | G1/2" | 202 | 108 | 12 | 2-M12 | 25.5 | 73 | 25 | 72 | 99.5 | 30.2 | 55 | 147 | 110 | ||
| MT02015.03 (1790-001-114) | 2x1/2"NPT | G1-1/4"-RH | 1/2"NPT | 208 | 76 | 12 | / | 18 | / | 28 | 63 | 85 | 42 | 55 | / | / | 110 | |
| MT02020.03 | 2xG3/4" | G1-1/2"-RH | G3/4" | 213 | 108 | 20 | 2-M12 | 27 | 77 | 25 | 75 | 104.5 | 34.2 | 60 | Rc1/8" | 157 | 110 | |
| MT02025.03 | 2xG1" | G1-1/2"-RH | G1" | 252 | 118 | 20 | 2-M12 | 31.5 | 87 | 25 | 84 | 117 | 48 | 72 | 197 | 110 |
MRH 旋转接头 (过孔联接)
例：ML01008RH038

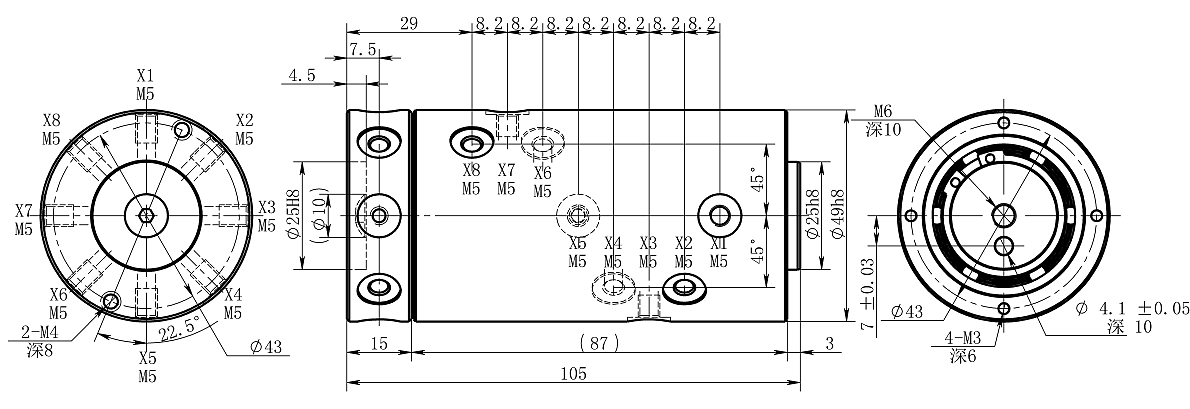

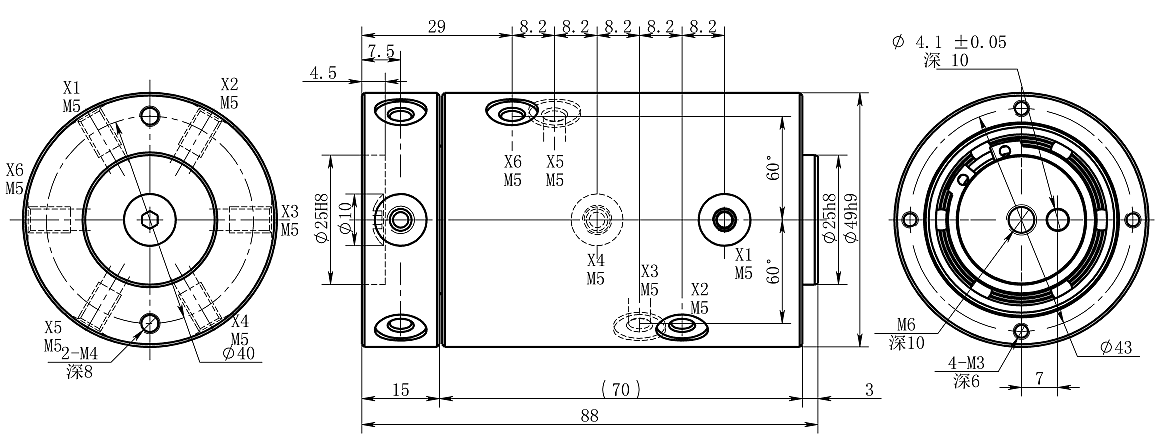

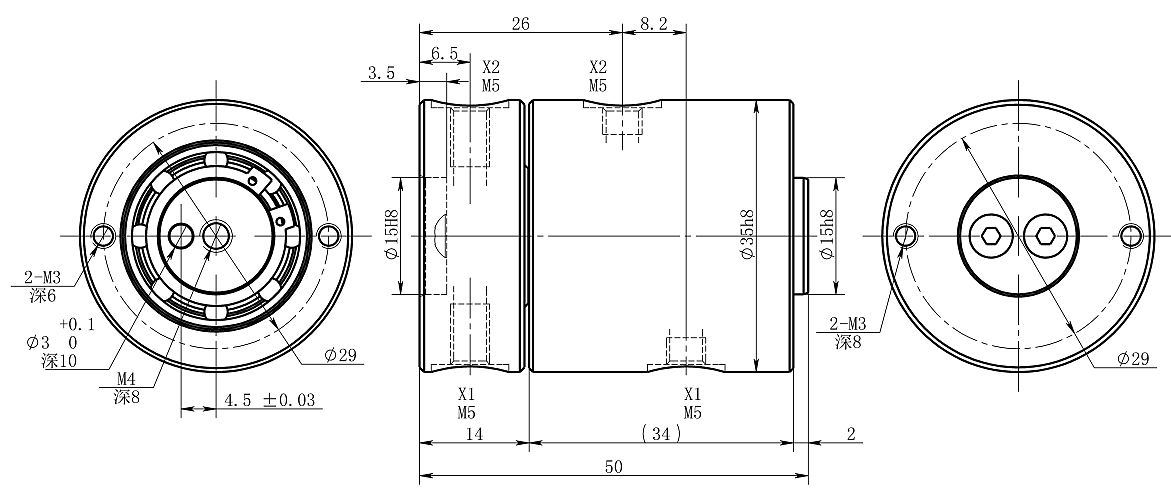

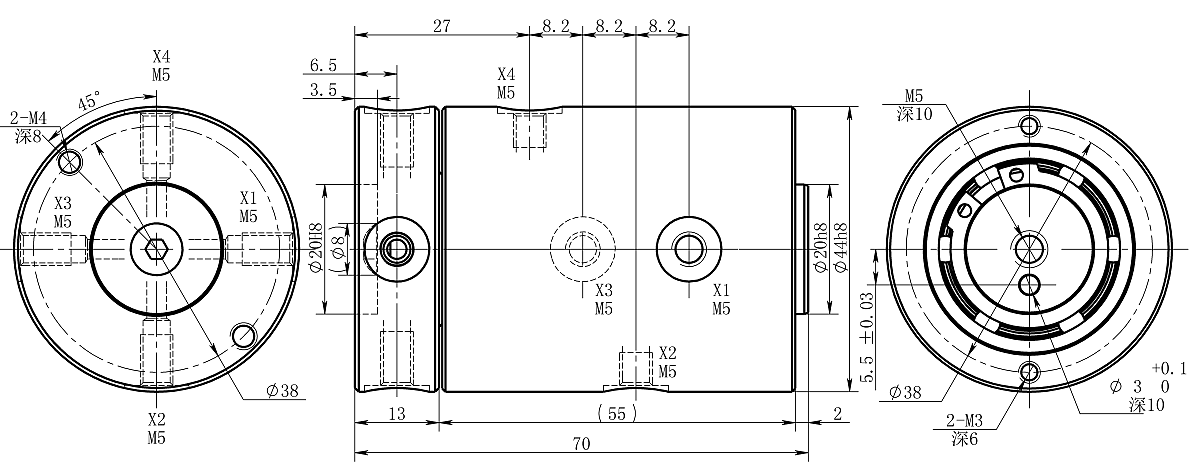

MQR 旋转接头(高速低扭矩压缩空气旋转接头)
MQR2-M5
MQR4-M5
MQR6-M5
MQR8-M5

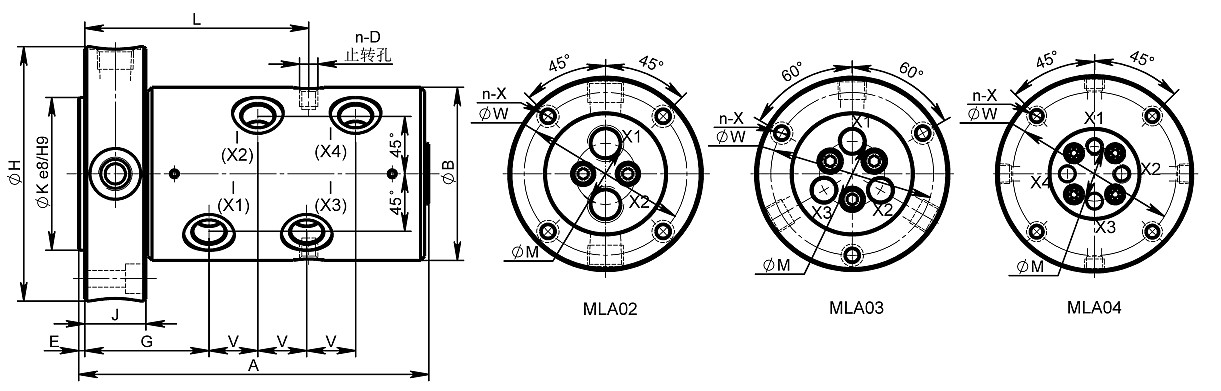

MLA 旋转接头(低速压缩空气旋转接头)
| TYPE | Order-No. | I | K | A | B | C | L | L5 | n-X |
| MLA01 | MLA01006 | Rc1/8" | R1/8" | 28.5 | 38 | 4 | 72 | 21 | 2-M5 |
| MLA01008 | Rc1/4" | R1/4" | 28.5 | 38 | 6.5 | 75 | 24 | 2-M5 | |
| MLA01010 | Rc3/8" | R3/8" | 34.93 | 44.5 | 9.5 | 84.7 | 30.7 | 2-M5 | |
| MLA01015 | Rc1/2" | R1/2" | 34.93 | 44.5 | 12.7 | 84.7 | 30.7 | 2-M5 |
| TYPE | Order-No. | I | K | A | B | M | n-D | L | E | G | V | J | W | H | n-X |
| MLA02 | MLA02005 | 2xM5 | 30 | 62.5 | 35 | 15 | 2-M5 | 45.5 | 3 | 29 | 11 | 14 | 45 | 58 | 4-φ5.5 |
| MLA02006 | 2xRc1/8" | 45 | 90 | 48 | 20 | 2-M6 | 75 | 3 | 43 | 18 | 20 | 60 | 75 | 4-φ6.6 | |
| MLA02008 | 2xRc1/4" | 50 | 106 | 58 | 25 | 2-M8 | 90 | 3 | 51 | 22 | 24 | 70 | 85 | 4-φ6.6 | |
| MLA02010 | 2xRc3/8" | 60 | 120 | 68 | 30 | 2-M8 | 95 | 3 | 59 | 24 | 30 | 80 | 95 | 4-φ6.6 | |
| MLA02015 | 2xRc1/2" | 70 | 145 | 85 | 35 | 2-M10 | 115 | 3 | 70 | 30 | 35 | 100 | 118 | 4-φ9 | |
| MLA03 | MLA03005 | 3xM5 | 45 | 89.5 | 48 | 25 | 2-M6 | 74.5 | 3 | 34.5 | 14 | 14 | 60 | 75 | 3-φ5.5 |
| MLA03006 | 3xRc1/8" | 50 | 112 | 58 | 30 | 2-M6 | 80 | 3 | 45 | 18 | 20 | 70 | 85 | 3-φ6.6 | |
| MLA03008 | 3xRc1/4" | 60 | 132 | 68 | 32 | 2-M8 | 100 | 3 | 52 | 22 | 24 | 80 | 95 | 3-φ6.6 | |
| MLA03010 | 3xRc3/8" | 70 | 150 | 78 | 35 | 2-M8 | 120 | 3 | 62 | 24 | 30 | 95 | 115 | 3-φ9 | |
| MLA03015 | 3xRc1/2" | 80 | 176 | 85 | 45 | 2-M10 | 145 | 3 | 70 | 30 | 35 | 100 | 118 | 3-φ9 | |
| MLA04 | MLA04005 | 4xM5 | 40 | 108 | 58 | 25 | 2-M5 | 70 | 3 | 37 | 14 | 14 | 70 | 88 | 4-φ5.5 |
| MLA04006 | 4xRc1/8" | 50 | 134 | 78 | 30 | 2-M6 | 100 | 3 | 49 | 18 | 20 | 90 | 108 | 4-φ6.6 | |
| MLA04008 | 4xRc1/4" | 60 | 158 | 85 | 40 | 2-M8 | 100 | 3 | 54 | 22 | 24 | 100 | 118 | 4-φ6.6 | |
| MLA04010 | 4xRc3/8" | 75 | 172 | 85 | 45 | 2-M8 | 110 | 3 | 61 | 24 | 30 | 105 | 125 | 4-φ9 | |
| MLA04015 | 4xRc1/2" | 90 | 205 | 98 | 55 | 2-M10 | 140 | 3 | 70 | 30 | 35 | 115 | 138 | 4-φ9 |
ML15040H100-N463 旋转接头(钢包回转台用)
技术参数：
最高转速：5 r/min
温度范围：-30～+80℃
最大压力：42Mpa
工作介质：液压油、空气、水乙二醇等
ML25040H120 旋转接头(钢包回转台用)
技术参数：
最高转速：5 r/min
温度范围：-30～+80℃
最大压力：42Mpa
工作介质：液压油、空气、水乙二醇等
ML26040H120-N462 旋转接头(钢包回转台用)
技术参数：
最高转速：5 r/min
温度范围：-30～+80℃
最大压力：42Mpa
工作介质：液压油、空气、水乙二醇等
